Fabrics > Fabrics - PTFE Coated Fiberglass

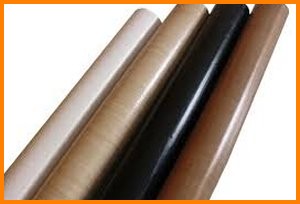

Fiberglass Fabric with PTFE Resin Impregnation - Anti-static and conductive


Non stick non-adhesive anti-static and conductive fabric

550°F / 287°C Continuous Exposure: Higher Intermittent

FlameShield™ high temperature, heat resistant and chemical resistant fabric is anti-static / conductive.  Suitable for sensitive electronics covers and conveyor systems that normally have static buildup.  Excellent resistance to almost all solvents, caustics and acids.

This material is a black color.

The base fiberglass fabric is rated to 1000°F / 537°C, while the PTFE coating melting point is 620°F / 327°C.

Available in 2 weights / thicknesses, in roll widths of 36 to 39.5" in a roll length of 18 and 36 yards.  This fabric may be slit to any width to use as a narrow fabric or tape.

The PTFE resin is applied to the fabric in a hot process and under pressure, causing a total impregnation of the base fabric.  The surface of the resin is smooth and it takes considerable and aggressive force to scratch the ptfe surface to remove it from the fabric with fingernail scraping.

ptfe resin coated fiberglass fabric non stick anti-static conductive high temperature heat resistant
