Fabrics > Fabrics - Silicone Rubber Coated Fiberglass

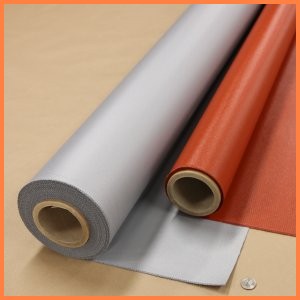

Silicone Rubber Coated Fiberglass Fabric - 2 side coated


High Temperature Heat, Weld Splatter, Grinding Spark, Molten Splash, Slag Resistant


500°F / 260°C Continuous Exposure: Higher Intermittent

FlameShield™ High temperature, heat and flame resistant 2 side coated silicone rubber coated fiberglass fabric is used in a variety of applications to form protective covers and shields to protect equipment and assets from extreme environmental and process exposures.

Can be cut into shapes and fastened into place with standard fasteners such as rivits, screws and bolts and also sewn with industrial sewing machines.

This fabric is available in a 60" roll width.

Light weight is 15 to 17 oz/square yard, medium is 18 to 25 oz/square yard and heavy duty is 32oz/square yard.  Available cut to length by-the-yard or in full roll lengths.

Light Duty

2 side coated - 8.5 to 18 oz/square yard

  • 8.5 oz   .009" thick    silver/grey
  • 15 oz    .014" thick    silver/grey
  • 18 oz    .015" thick    silver/grey and oxide-red

These fabrics are available in a 60" roll width.   Available cut to length by-the-yard or in 50 yard / 150 foot roll lengths.

silicone rubber coated fiberglass fabrics

Medium Duty

2 side coated - 18 to 26 oz/square yard

  • 18 oz    .018" thick    silver/grey or oxide-red
  • 26 oz    .019" thick    silver/grey and oxide-red

These fabrics are available in a 60" roll width.  Available cut to length by-the-yard or in 50 yard / 150 foot roll lengths.

silicone rubber coated fiberglass fabrics

Heavy Duty

2 side coated - 32 to 96 oz/square yard

  • 32 oz    .032" thick    silver/grey or oxide-red
  • 45 oz    .060" thick    oxide-red  in 40" and 60" widths
  • 65 oz    .070" thick    oxide-red in 40" and 60" widths
  • 96 oz    .125" thick    oxide-red in 40" width

  • These fabrics are available in 40" and 60" roll widths.  Weight is from 32 to 96 oz/square yard.  Available cut to length by-the-yard or in 50 yard / 150 foot roll lengths.

    silicone rubber coated fiberglass fabrics
